Description
Features

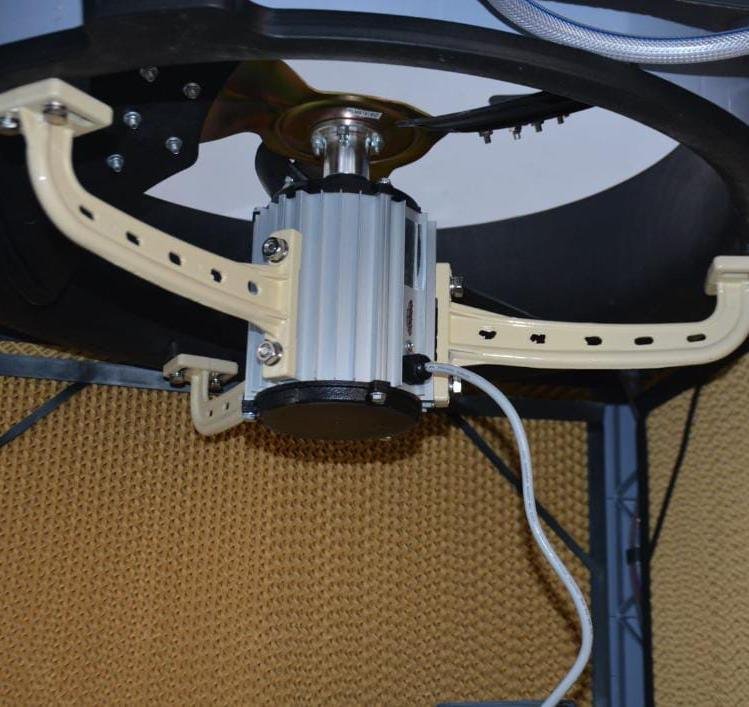

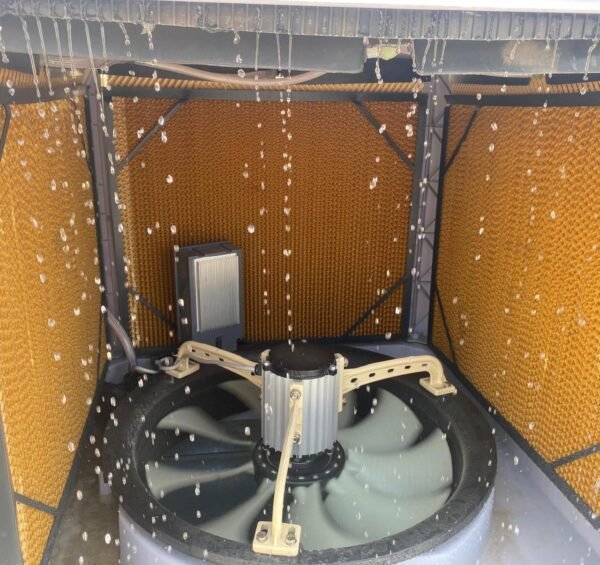

01.Equipped with Evaporative Air Cooler, the cooler runs smoothly with low noise. Motor with light-weight, less noise, no excitation sound.
02.Motor with high efficiency, running cost is saved 20% for the same running conditions.
03.For centrifugal unit, with motor direct-connected, there is less running parts,easy maintenance.

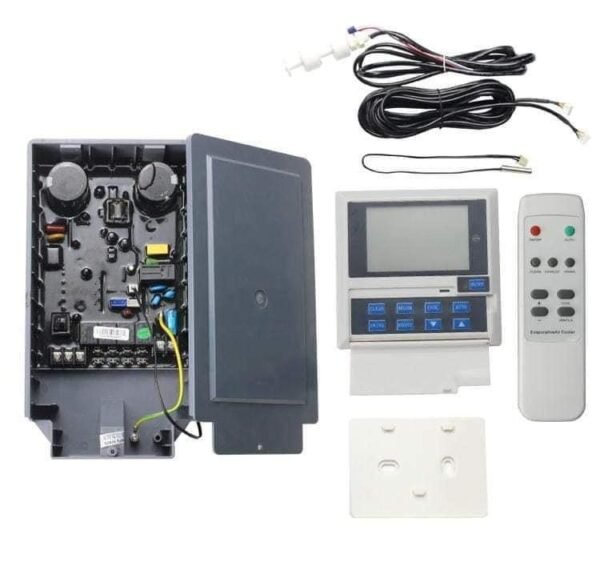

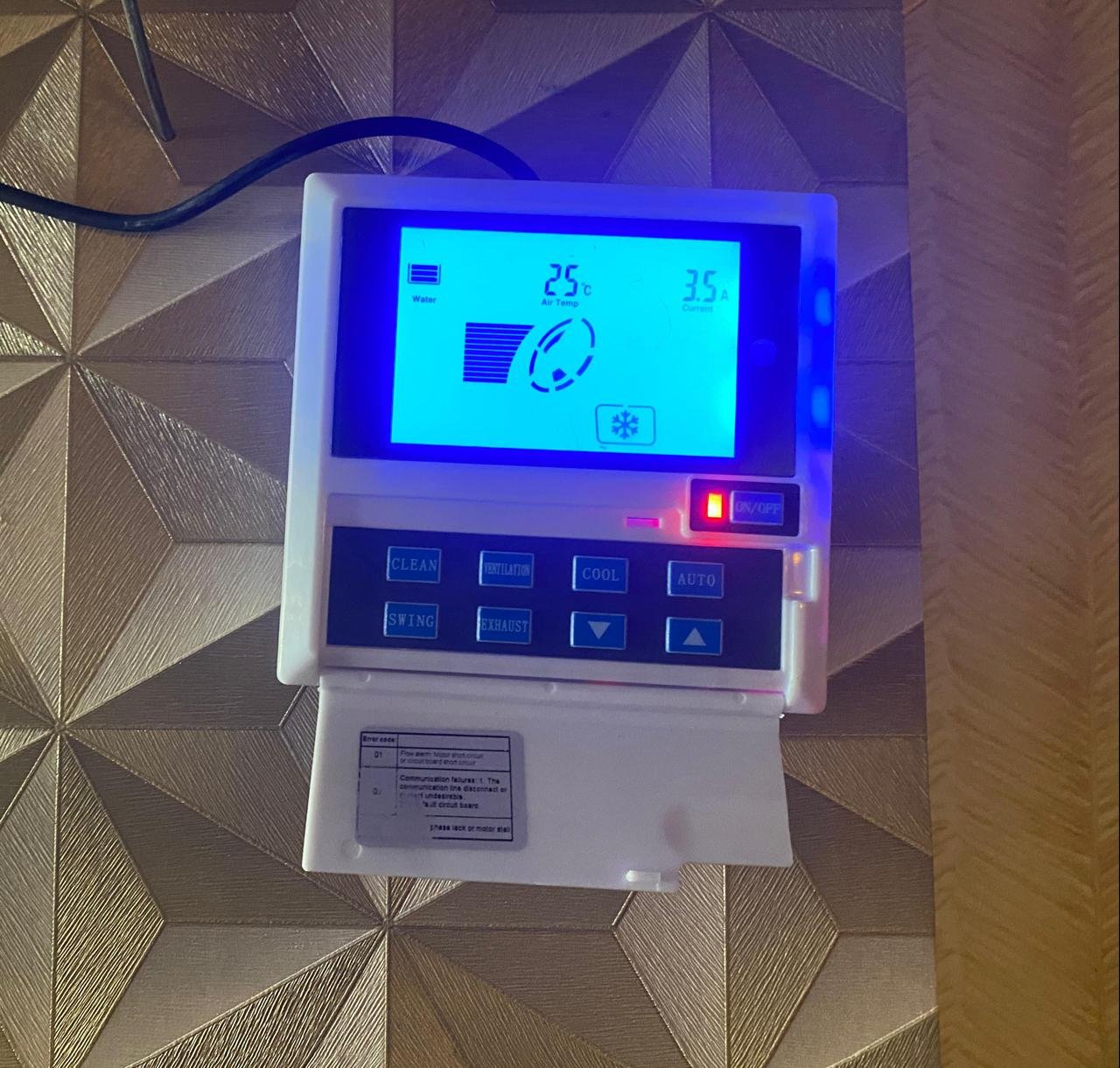

04. Using intelligent LCD controller, the working status and fault display of the equipment are clear at a glance.

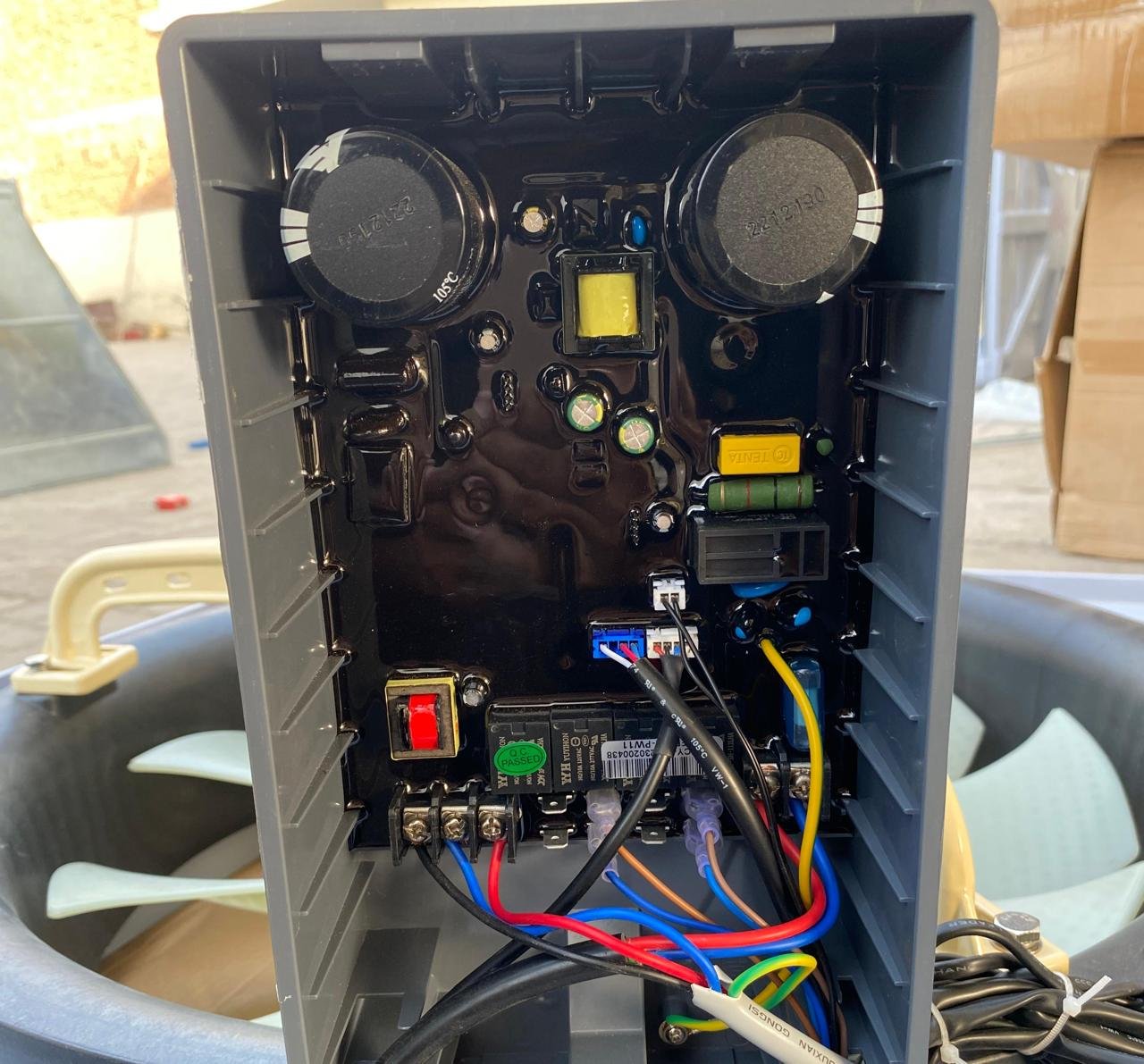

05. Constant power electronic control, automatically sense the resistance to adjust the air pressure and air volume to ensure the air supply volume and air supply distance.

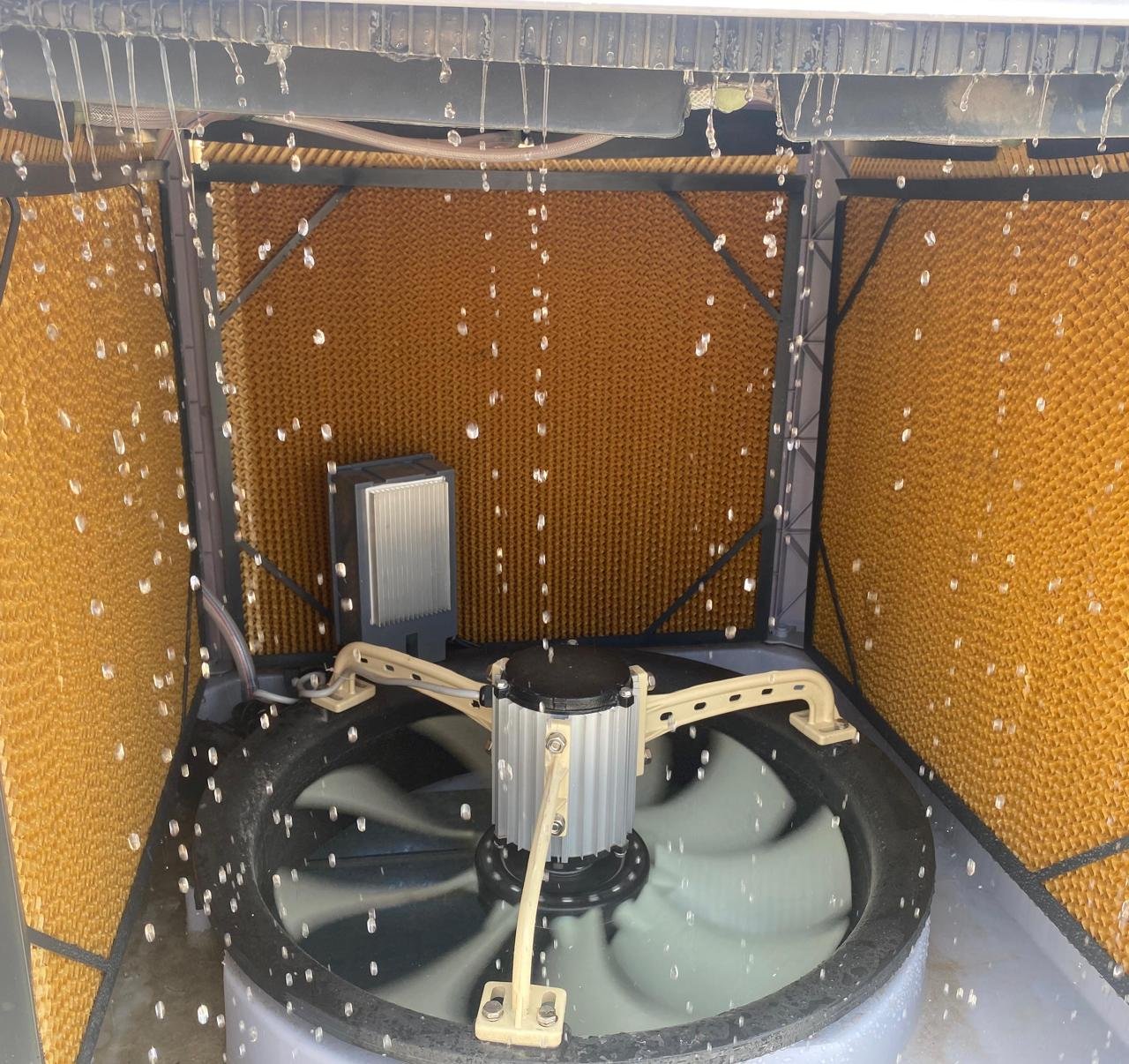

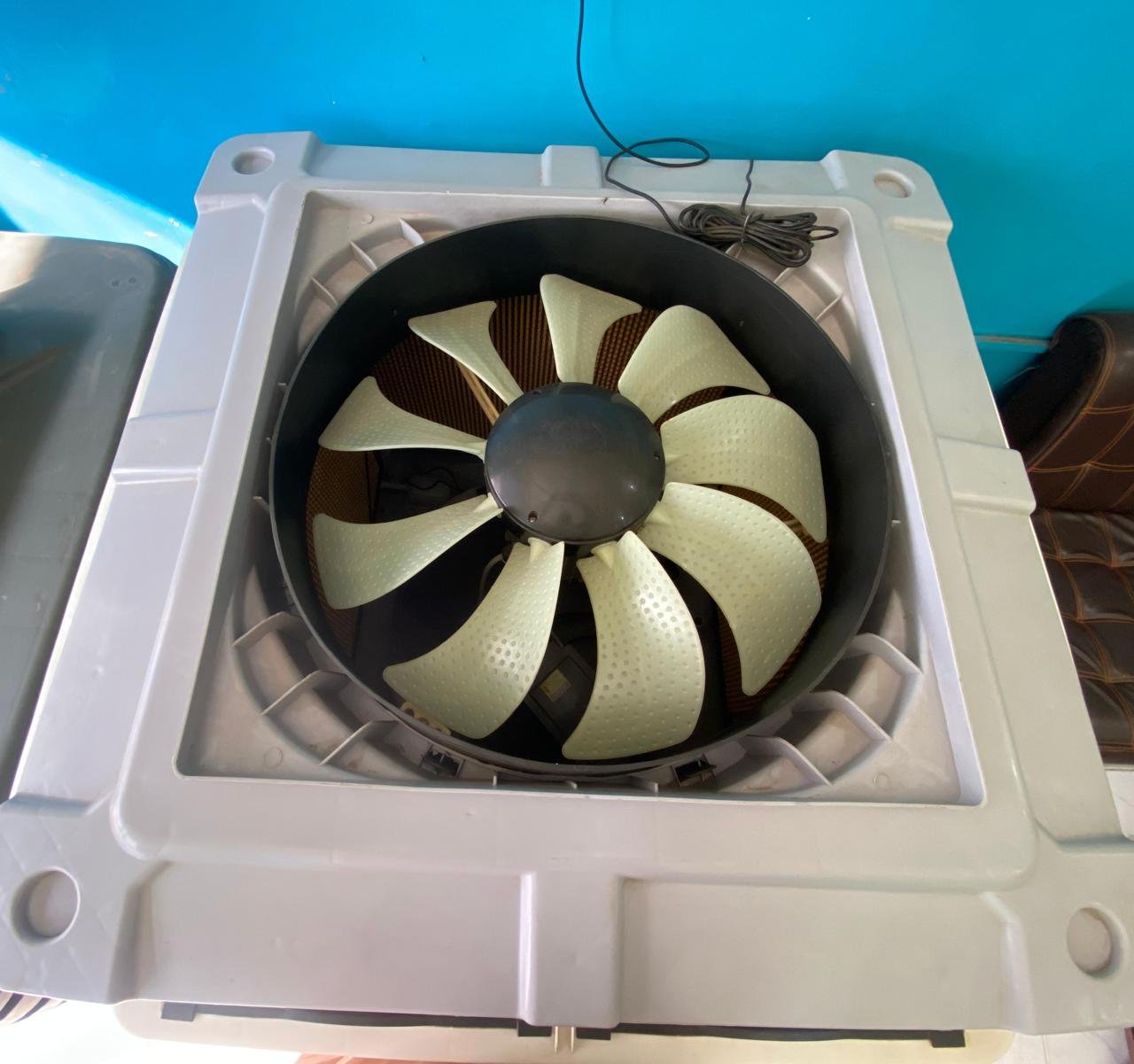

06. The professionally designed forward-leaning multi-blade centrifugal fan is adopted, with high static pressure at the outlet and long air supply distance.
07. The volute and impeller are made of new composite materials, which are light in weight, corrosion-resistant, anti-aging and have good vibration-absorbing effective.
08. There are two ways of air outlet, upper and lower, with stable operation and low noise, especially suitable for commercial places.
09. With air damper to avoid hot air outlet in winter.

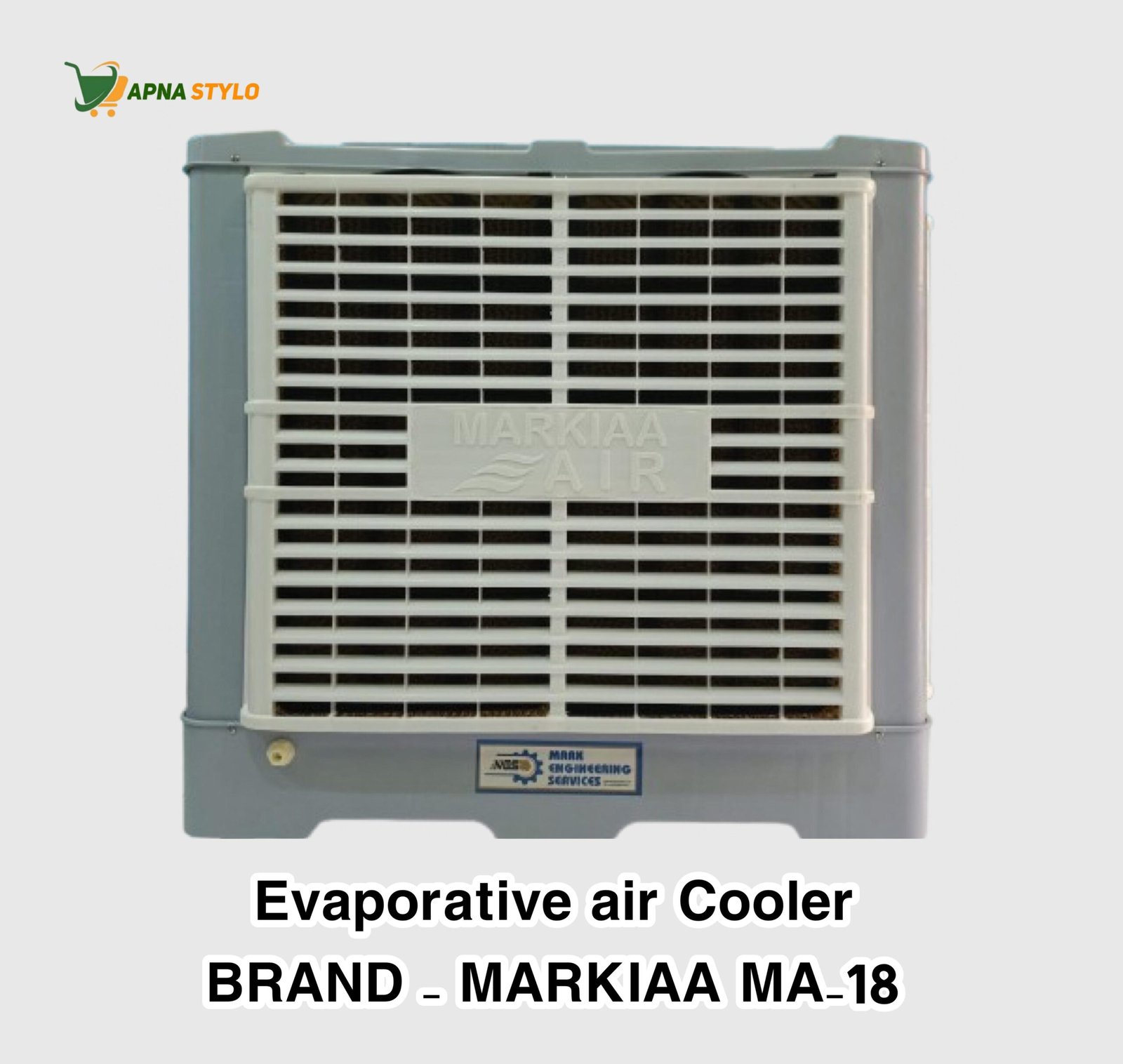

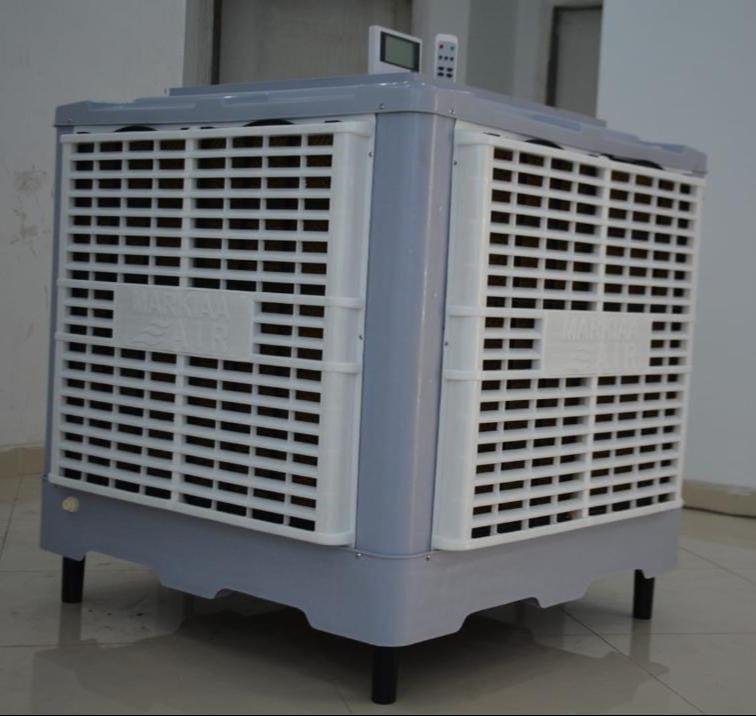

Model – MA18-ZX10E/DA/TA/SA
Brand – Markiaa Air
Power – 1.1 kw /2>6 Amp (Depend on Speed)
Fan Speed – 12 Speed
Air Flow – 18000m3/h (10400-CFM)

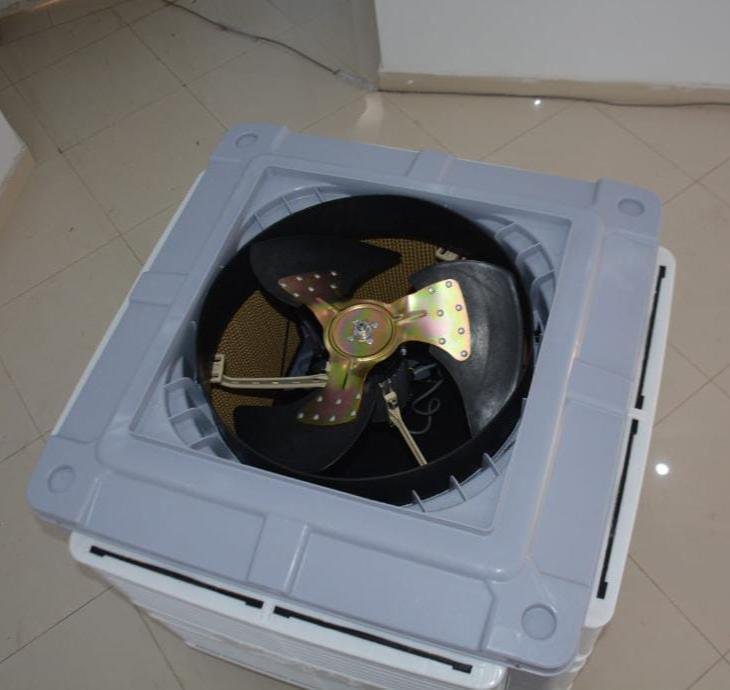

Fan type – Axial
Voltage – 1-phase,220V
Frequency- 50/60-Hz
Control System – LCD+Remote
Dimension (L*W*H-1080*1080*950(Down/Top

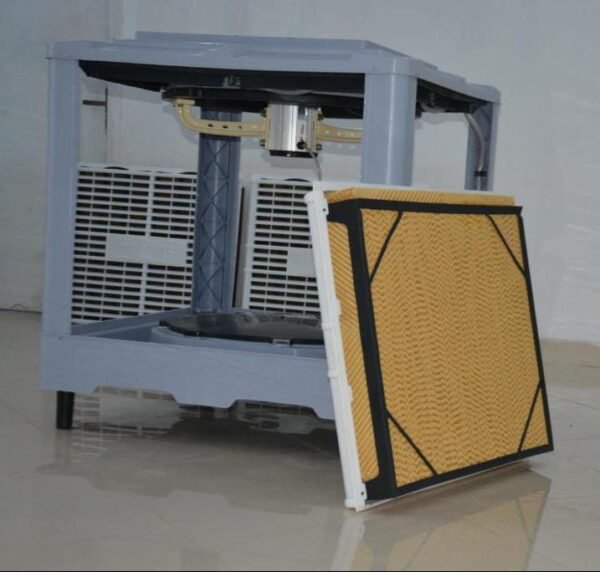

Pad size (MM)-760*660*100 (Down/Top)

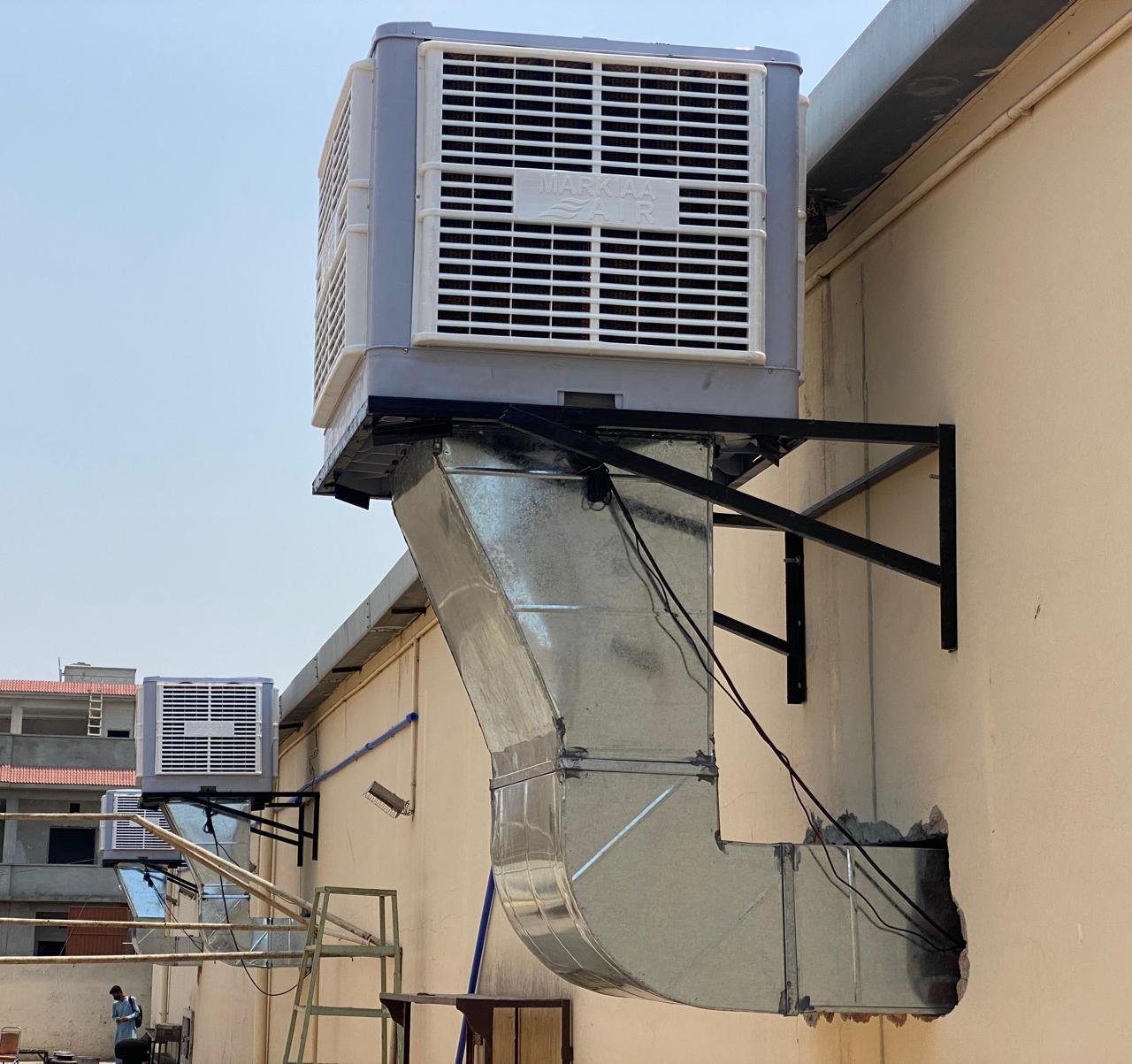

Air Outlet Size -660*660 Down / Up / Side
Air Outlet Direction -Down / Up / Side
Application Area – 800>1200-SFT
Noise – <79-DB
Net Weight (+3kg) – 60 Down / Up / Side
Operation Weight – 90 Down / Up / Side
Water Tank Capacity -30 Liter
Water Consumption -14- 18 Liter/H
Automatic Drain Setting – Yes
Reversible – Yes
Application
Shopping Mall, Commercial Kitchen, Industrial plants,
Hotel, Masque, Hospital, General Store, Gym, Grocery,
Fast Food, communication equipment rooms, Home/Office places, etc
Warranty
1 Year Electric Parts
2 Year Body
